Core Mechanisms of Tamper-Evident Security Labels
Security labels rely on irreversible physical transformations to provide unambiguous evidence of interference—preventing concealment of unauthorized access attempts.
Void messages, material delamination, and irreversible pattern distortion
Tamper-evident security labels use engineered materials and designs that fail destructively upon removal. Key mechanisms include:

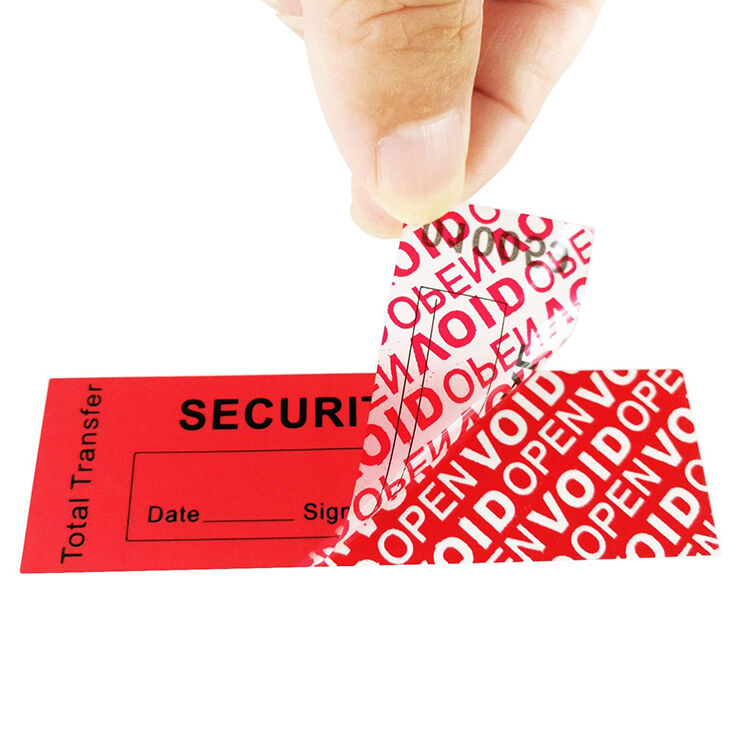

- Void messages: Hidden text (e.g., “VOID”) or patterns become permanently visible when the label is peeled
- Material delamination: Fragile facestocks fracture into non-reconstructible fragments
- Irreversible pattern distortion: Holographic foils or micro-optic prints distort permanently under stress
These failures leave permanent forensic traces on both the label and the underlying surface—ensuring tampering cannot be hidden or reversed.
How these mechanisms provide immediate, unambiguous visual evidence of interference
The core principle is binary, tool-free verification: either the label remains intact (secure), or it displays unmistakable signs of compromise (tampered). When removal force is applied:
- Destructive adhesives bond irreversibly to the substrate
- Substrates fragment beyond reassembly
- Hidden features activate instantly and irreversibly
This delivers instant visual confirmation—no training, scanning, or lab analysis required—and preserves evidence for audit and chain-of-custody validation.
Security Labels as Dual-Purpose Detection and Deterrence Tools
Real-time visual feedback enabling rapid incident response
Tamper-evident labels deliver immediate, unambiguous detection through mechanisms like void activation or holographic distortion. This allows frontline personnel to identify compromised items in seconds—accelerating containment by up to 75% compared to non-visual systems. For example, a pharmaceutical seal displaying “VOID” across its surface triggers automatic quarantine and removal from distribution. Rapid identification mitigates downstream risk: delayed detection can trigger recalls averaging $740k (Ponemon Institute, 2023) and long-term brand erosion. Eliminating the need for forensic verification also streamlines incident triage and reporting workflows.
Behavioral deterrence: reducing tampering attempts through perceived risk and traceability
Visible, high-integrity security labels act as psychological deterrents. Facilities deploying them report a 62% reduction in attempted intrusions within six months. This stems from two interlocking factors:
- Perceived accountability, reinforced by serialized tracking that creates auditable trails to individual handlers
- Amplified detection risk, signaled by overt tamper-evident features that indicate routine inspections will expose interference
When paired with real-time detection, this dual function transforms labels from passive indicators into proactive defense tools—enabling organizations to resolve supply chain integrity incidents 40% faster.
Industry-Specific Efficacy and Validation of Security Labels
Pharmaceutical supply chains: FDA compliance, cold-chain integrity, and failure rate benchmarks (2022–2023)
Tamper-evident labels are integral to meeting FDA requirements for track-and-trace, anti-counterfeiting, and serialization under the Drug Supply Chain Security Act (DSCSA). In cold-chain logistics, they must retain adhesion and legibility across extreme temperatures (–20°C to +40°C), including repeated freeze-thaw cycles. Validated industry data from 2022–2023 shows top-tier labels achieve failure rates below 0.1% under these conditions—supporting patient safety, regulatory compliance, and uninterrupted distribution.
Food and electronics sectors: contrasting requirements for moisture resistance, adhesion reliability, and audit readiness
| Requirement | Food sector | Electronics sector |
|---|---|---|
| Moisture resistance | Must withstand condensation and high humidity in refrigerated environments | Must resist oil, flux, and industrial cleaning solvents |
| Adhesion reliability | Must bond securely to irregular, low-energy surfaces (e.g., plastic wrap, corrugated cardboard) without lifting or curling | Must adhere reliably to metals and high-temp plastics—and release cleanly without residue during rework or recycling |
| Audit readiness | Must survive multiple handling steps, remain scannable, and support rapid recall traceability | Must endure reflow soldering (up to 260°C), maintain legibility, and support end-of-life compliance reporting |
Meeting these divergent demands requires purpose-built constructions—such as food-grade pressure-sensitive adhesives for packaging and high-temperature acrylics for PCBs—to ensure both regulatory alignment and operational resilience.
Limitations and Practical Considerations for Security Label Deployment
While highly effective for detection, security labels require thoughtful implementation. Cost remains a barrier—especially for advanced variants integrating RFID, NFC, or IoT connectivity—due to hardware, software integration, and staff training expenses. End-user verification capability is another critical dependency: if consumers or field personnel don’t know how to interpret void messages or check for distortion, detection fails at the point of use. Global standardization gaps also hinder interoperability across international supply chains, while privacy concerns around data-collecting smart labels necessitate transparent governance and compliance with frameworks like GDPR or CCPA. Operationally, success depends on robust change management—including staff training, centralized version control to prevent obsolete labels from entering production, and ongoing regulatory monitoring. Addressing these factors ensures labels perform reliably—not just in lab tests, but across real-world logistics, handling, and inspection environments.
